Installing Elevators in Wood Structures Just Got Easier

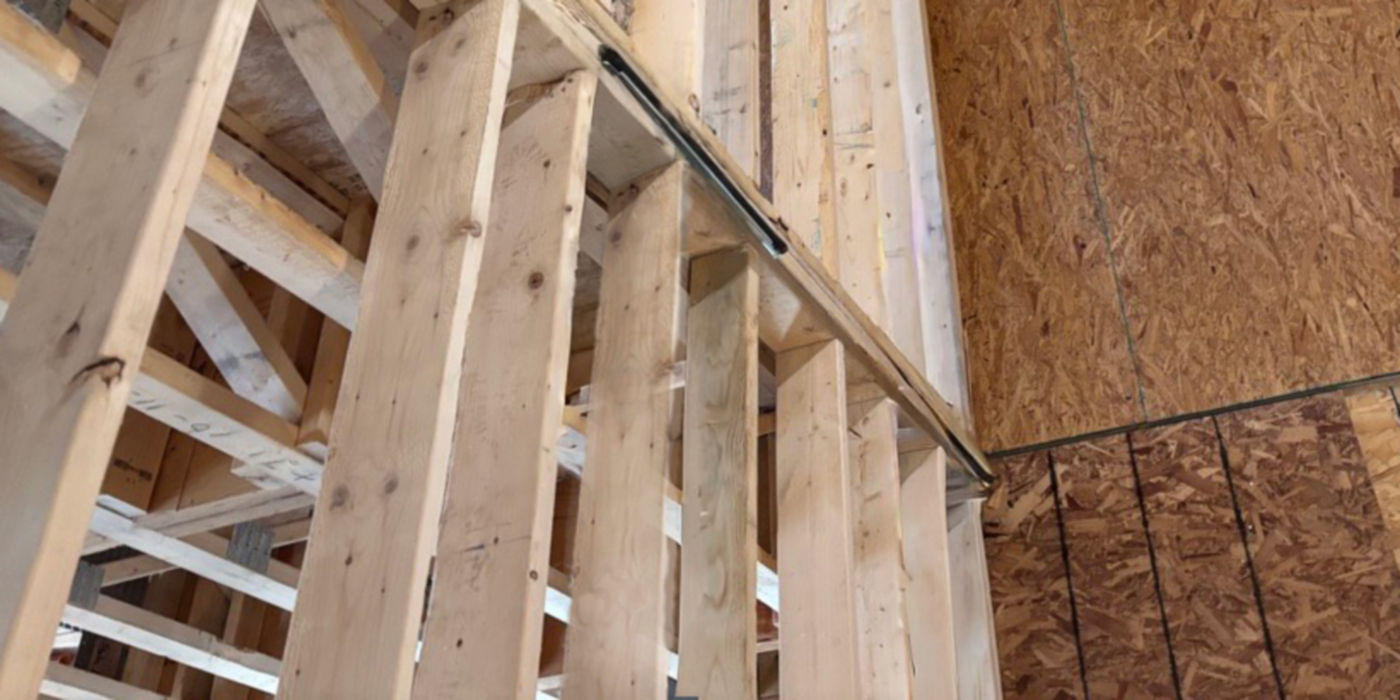

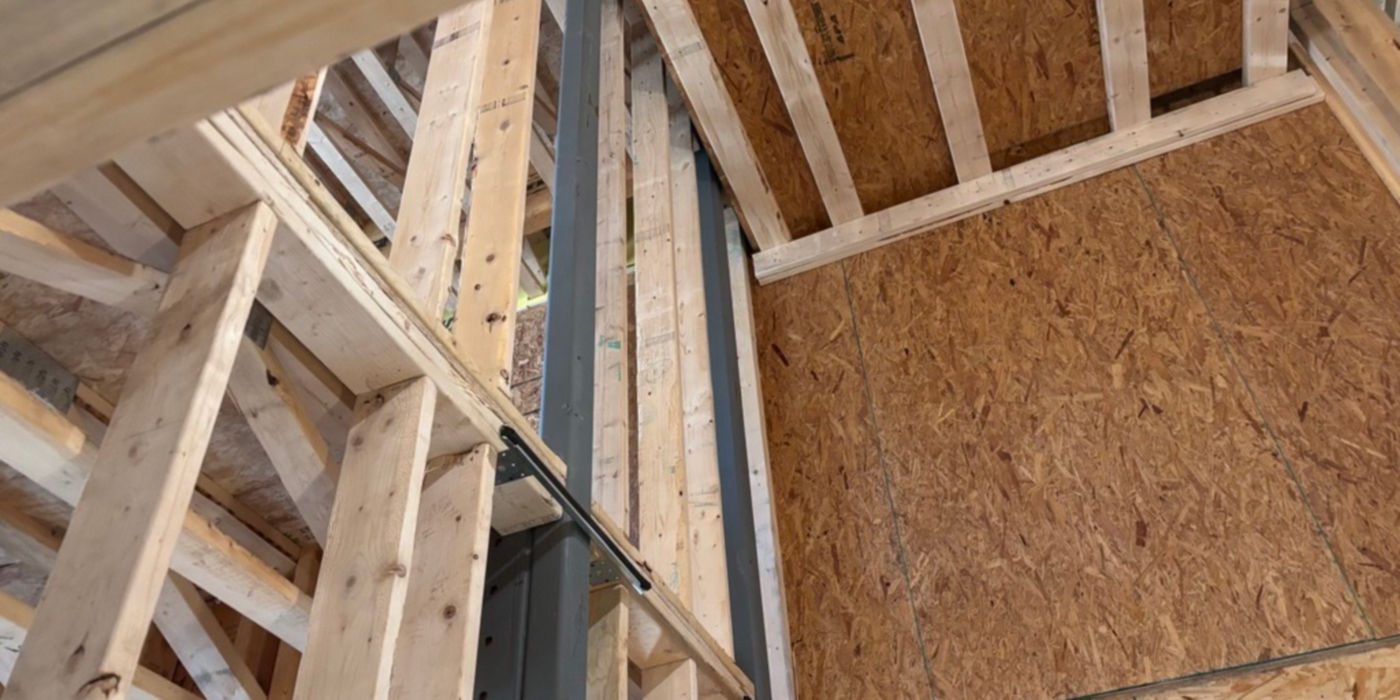

Wood structures are becoming increasingly popular in modern construction, and now installing elevators in these projects is easier than ever. KONE has a new solution for attaching elevator guide brackets in wood hoistways, making the process more efficient and cost-effective.

A wood insert utilizing a structural timber lag bolts are now approved for use throughout the full hoistway height in both seismic and non-seismic applications. This means KONE MonoSpace® 300 DX and 500 DX elevators can be installed in wood structures with confidence.

• Lower Costs: A 60-inch Hilti insert (including lag bolts) costs about 1/3 of the cost of a steel plate or ~5% of the cost of tube steel.
• Simplified Installation: The approved Hilti solution streamlines the process for contractors and engineers.
• Code Compliance: ICC-ES evaluation reports ensure acceptance by authorities and peace of mind for customers.

KONE’s industry-leading elevators, utilizing the new wood insert solution allows you to deliver projects that are efficient, compliant, and cost-effective.

👉 Contact your KONE representative to learn more about integrating wood hoistway solutions into your next project.
